INDUCTION PS CARD SET

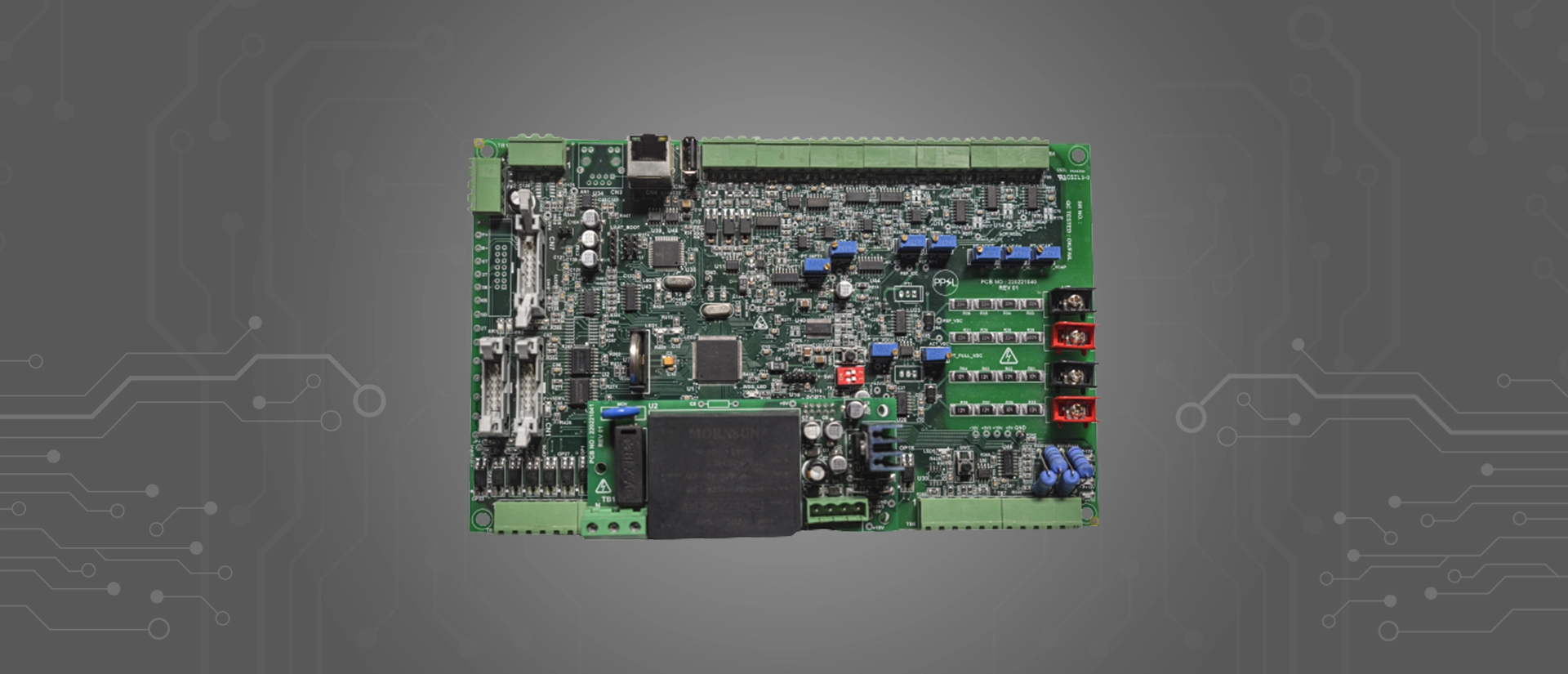

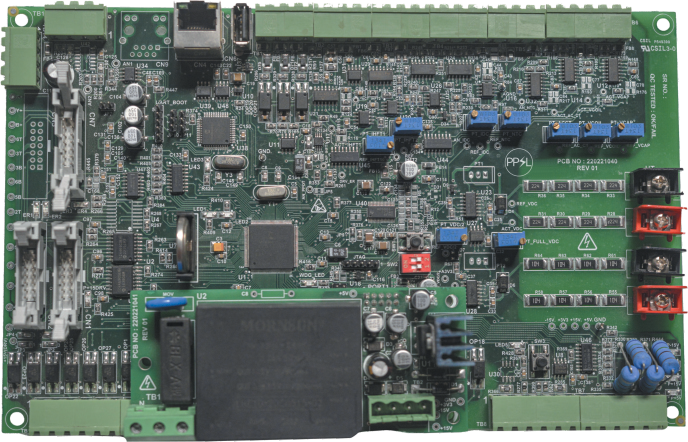

ASL 220221040: Controller
Digital Signal Processor (DSP) functionality with a
high-performance 16-bit MCU ARCHITECTURE
50KW - 2MW
Product Ordering Code :
ASL 220221040, 220221041
- dsPIC33, 16-bit High Speed CPU with Integrated DSP.
- USB 2.0 OTG-Compliant Full-Speed Interface.
- 16 PWM Channel with 8.32 ns Resolution.
- Capable to generate 12 PWM for Parallel Inverter.
- Capable to Generate Half & Full Control Pulse for SCR Firing.
- Ethernet for data monitoring & data analysis in High Power (2MW) system.
- High Speed USB 2.0 OTG-Compliant for Fault log.
- High Speed USB 2.0 OTG-Compliant for Fault log.
- RS-485 for interface with Energy meter for peak power demand control.
- RS-485 for LCD or touch screen interface.
- Universal Modbus Protocol implemented for HMI Interface.
- 2 Ch for 4-20mA, 10 Ch for 10-bit ADC along with 4 Ch for 14-bit high resolution ADC.
- Signal Conditioning of DC Voltage, Current, AC Voltage & current along with IGBT NTC temperature feedback.
- Real time Clock Implemented.
- 18 Digital input.
- 3 Dedicated Digital Output.
- All user Configurable 4.0KV Isolated Digital Input
SPECIAL CONTROL CARD FEATURES
DI / DO
- 70 MIPS Speed .
- 536K Program Flash Memory.
- 122: I/O Pins, 9: 16-Bit Timer.
DIMENSIONS
- Overall Size (in mm) : 240 x 150
- Mounting Hole pitch (in mm) : 230 x 140

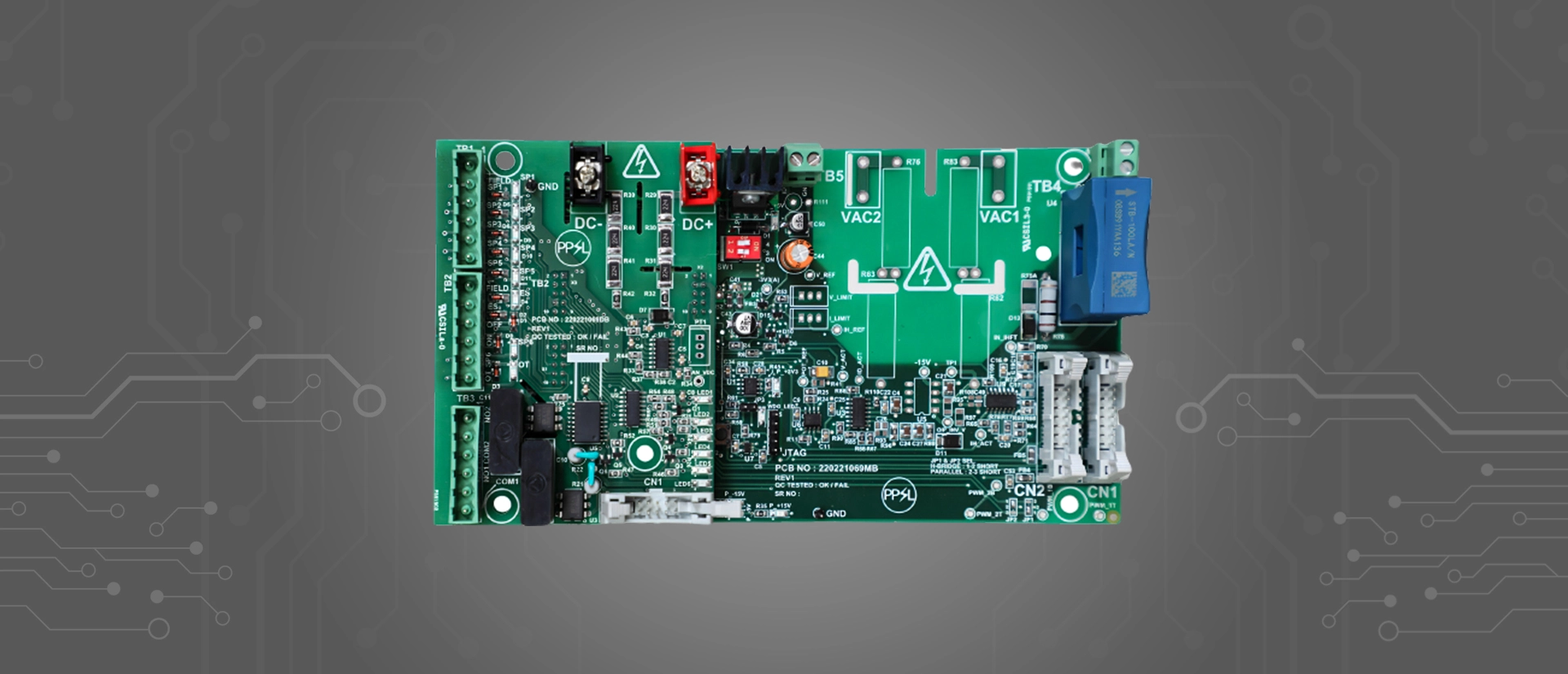

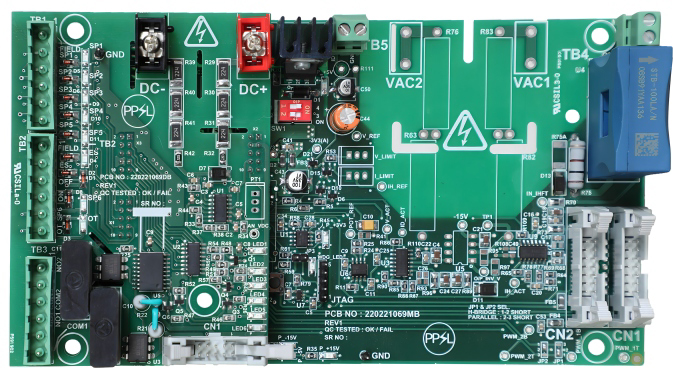

ASL 220221069: Controller
SPECIAL CONTROL CARD FEATURES
- Capable to generate 4 PWM for DC-AC / DC-DC Converter.
- RS-485 for LCD or touch screen interface.
- Universal Modbus Protocol implemented for HMI Interface.
- 8 Ch for 10-bit ADC for Signal Monitoring.
- On board Watchdog IC for hard reset in case of controller malfunction.
- R, Y, B Input Voltage Phase sensing & Sequence monitoring.
- R, Y, B Input Voltage Phase sensing & Sequence monitoring.
- DC Voltage, Current & AC HF Voltage & Current Feedback
- Capable to generate 100 Hz...50 KHz PWM Pulse.
- 120MHz, 16-bit Digital Signal Processor & Controller.
- Compact in Size
- 10 Digital inpu.
- 2 Dedicated Digital Output, 230V Contact.
- All user Configurable 4.0KV Isolated Digital Input
DI / DO
10 - 50KW
Product Ordering Code :
ASL 220221069
DIMENSIONS
- Overall Size (in mm) : 200 x 108
- Mounting Hole pitch (in mm) : 166 x 96.6

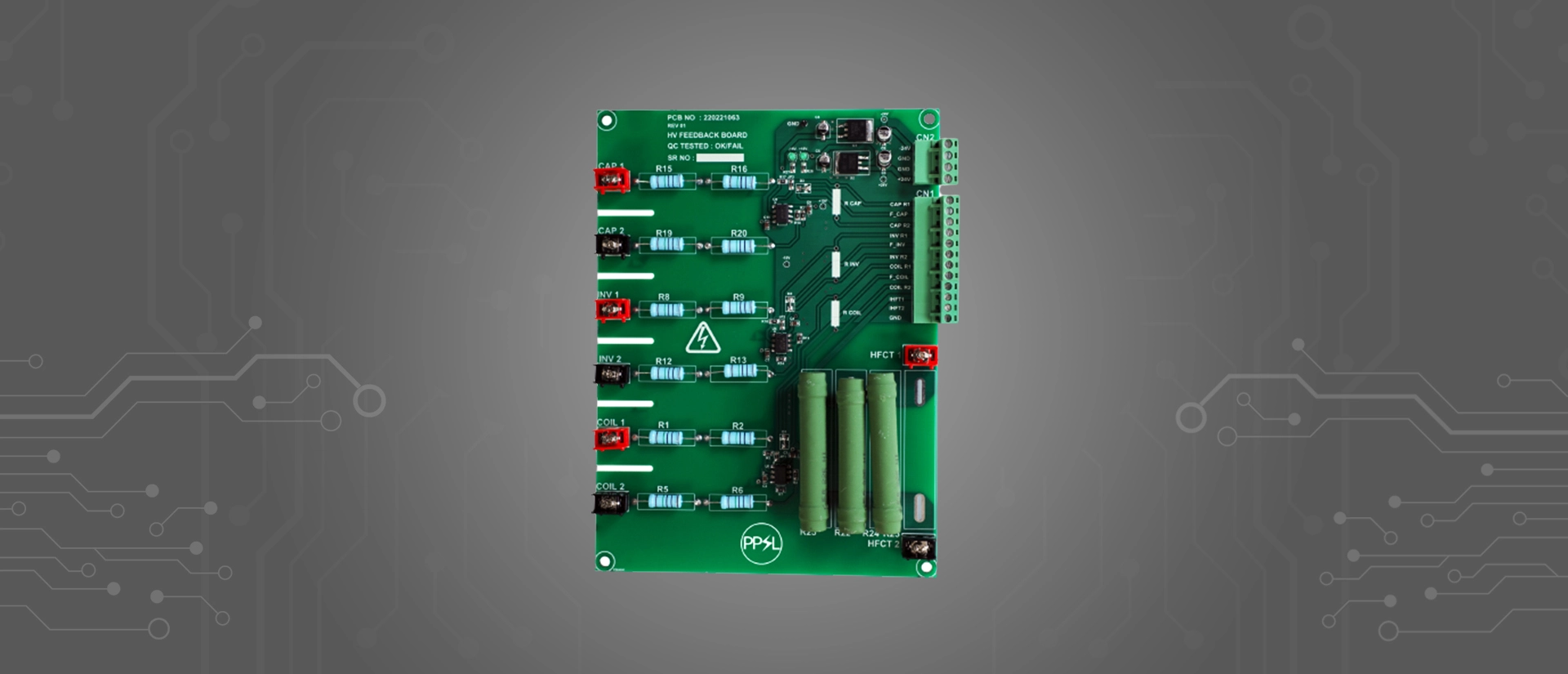

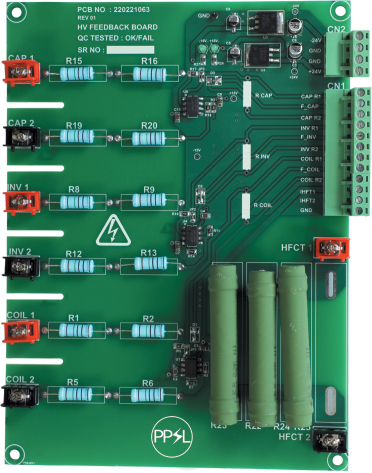

ASL 220221063 : Feedback
FEEDBACK SIGNAL SPECIFICATION
- AC voltage: 0-3000V, 10 kHz.
- AC current: BURDEN 22E, 25W (CT SECONDARY 1A / 5A, 10 kHz).
- 0-10V (1000V/10, 1500V/10, 2000V/10).
- Fully Complying the EMC requirement and prone to EMI.
- No need of Bulky Isolation transformer for HV Feedback.
- Low Power Consumption
- Input Supply +24V and -24V for bidirectional analog sensing
- User Selectable Voltage Signal Scaling for better accuracy.
OUTPUT VOLTAGE SPECIFICATION
FEATURES
| User Selection | WITH 10MΩ RESISTOR | |||
|---|---|---|---|---|
| 1000V/5.15V | 1500V/4.95V | 2000V/5.03V | 3000V/4.95V | |
| R3, R10, R17 | 47K | 33K | 47K | 15K |
| JP1, JP2, JP3 | 56K | 33K | 3.3K | 18K |
10KW-2MW
Product Ordering Code :
ASL 220221063
DIMENSIONS

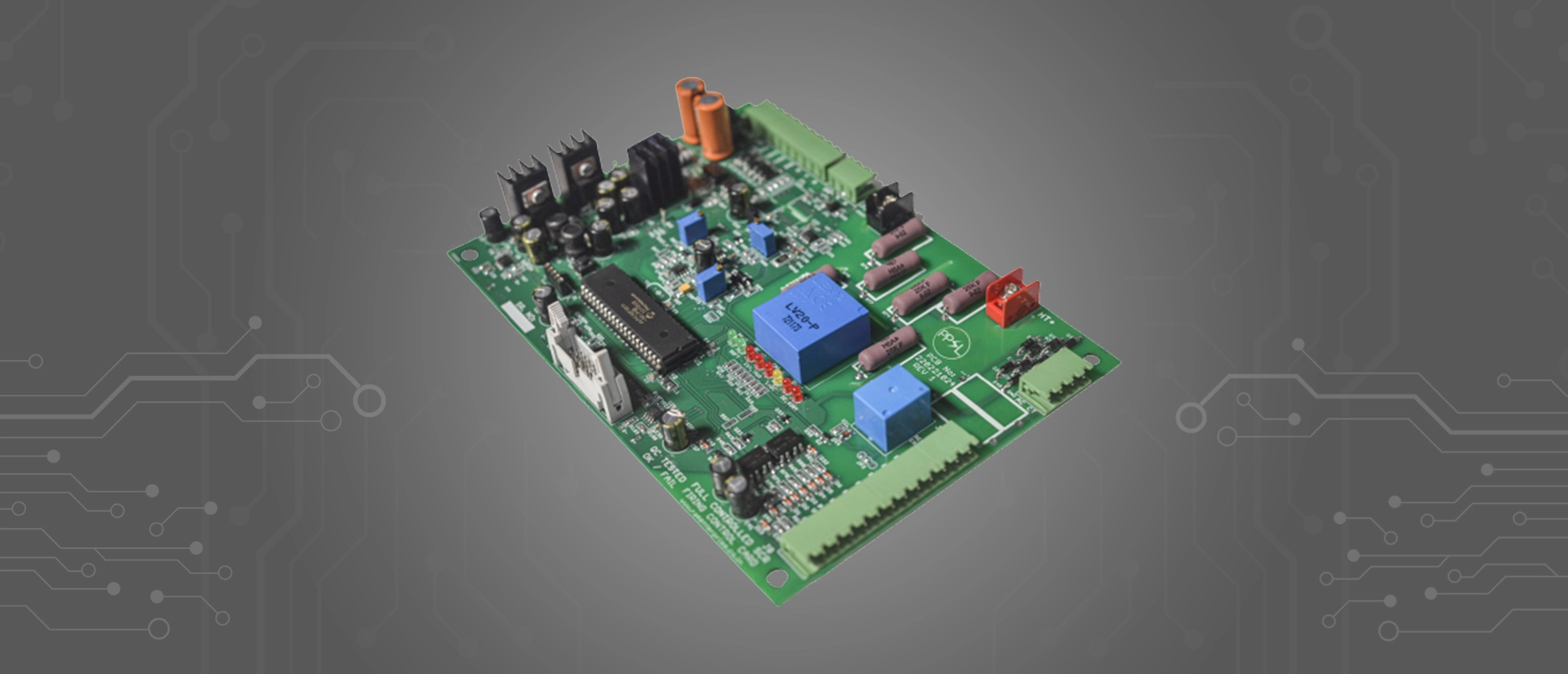

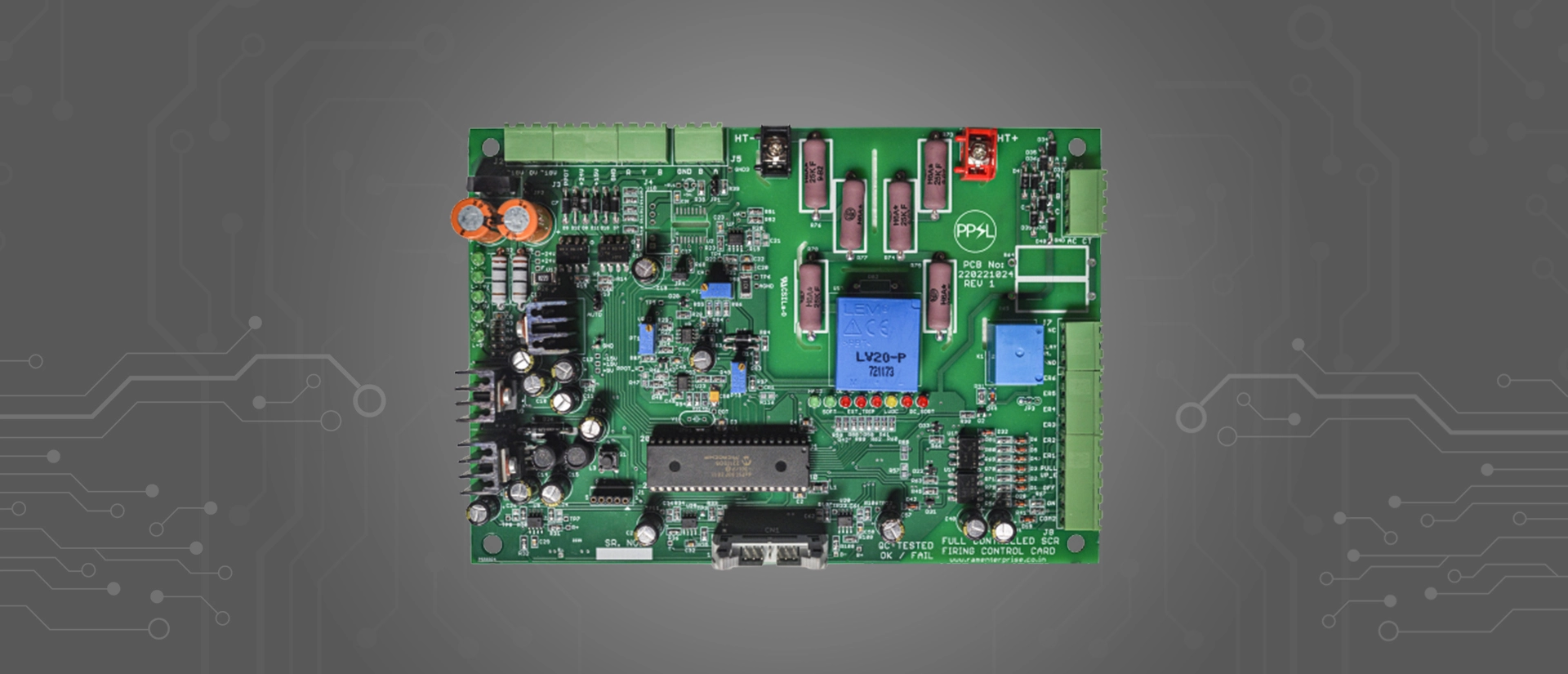

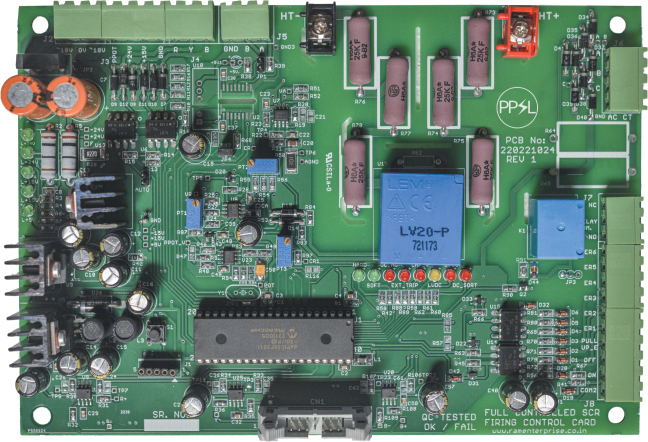

ASL 220221024 : SCR Firing Controller
FEATURES
- No Need of Pre-charge in half controlled Circuit.
- Mainly used in 6-Pulse & 12-Pulse SCR firing Rectifier.
- Field Proven, Reliable & rugged Controller tested up to 2.0 MW.
- On board DC Voltage Feedback with Soft Turn ON.
- Line current Sensing for monitoring & trip
- Six Digital Input & One Relay output for Alarm.
- More than 0.99 Power Factor with half controlled SCR firing.
- Hardware & Software based trip Setting.
- Optional HMI Interface.
- High Voltage, Low Voltage, DC Short, Phase Lost Indication for fault debugging.
- LED INDICATION:
Product Ordering Code :
ASL 220221024
DIMENSIONS
Power ON : Green L-24V, L+24V, L-15V, L+15V, L+5V (ON : Healthy, Off : Fault)
SOFT : Green (Blinking: Soft start Mode, OFF: Completion)
LVDC : YELLOW (ON : Low DC Voltage)
DC_SHORT : RED (ON : DC short)
OC_AC : RED (ON : Line Current Over load)
SOFT : Green (Blinking: Soft start Mode, OFF: Completion)
LVDC : YELLOW (ON : Low DC Voltage)
DC_SHORT : RED (ON : DC short)
OC_AC : RED (ON : Line Current Over load)
HARD : Green (ON : Hard Fire Mode)
OVDC : RED (ON : Over DC voltage)
CAP_V : RED(ON : phase loss)
EXT_TRIP : RED (ON : Digital inputs fail)
OVDC : RED (ON : Over DC voltage)
CAP_V : RED(ON : phase loss)
EXT_TRIP : RED (ON : Digital inputs fail)

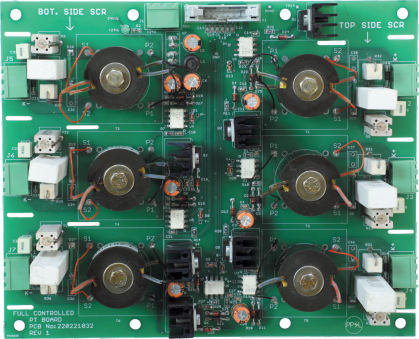

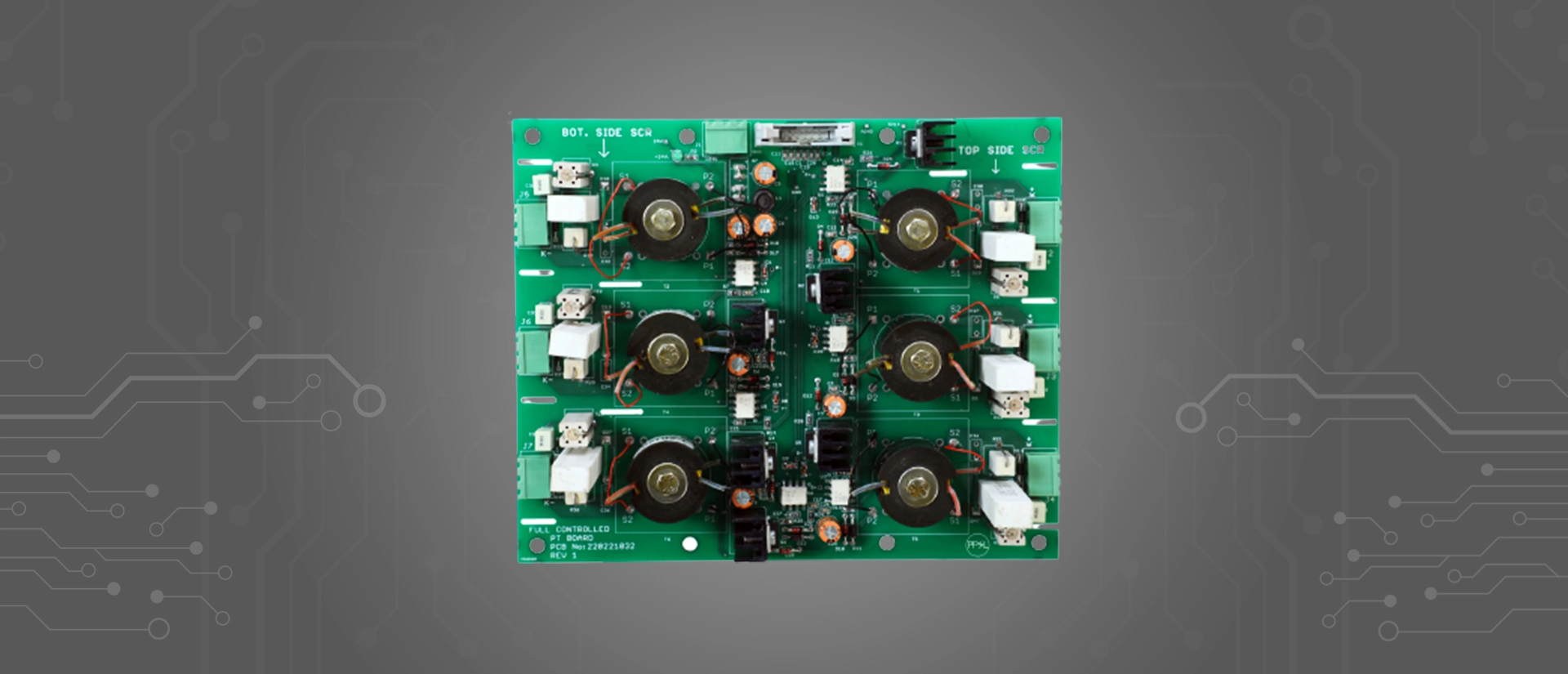

ASL 220221032 : SCR PT
FEATURES
- Capable to Drive up to 2400A 3000V SCR Module.
- Soft & Hard Firing Pulse Transformer for Phase controlled SCR.
- Standard 5.0KV Isolation & expandable up to 10KV.
- High dv/dt & di/dt for fast current spreading over SCR.
- 18-0-18V AC / +24V DC Power supply input to Drive.
- 10-Pin FRC Interface with ASL 220221024, ASL 220221040.
Product Ordering Code :
ASL 220221032
DIMENSIONS
