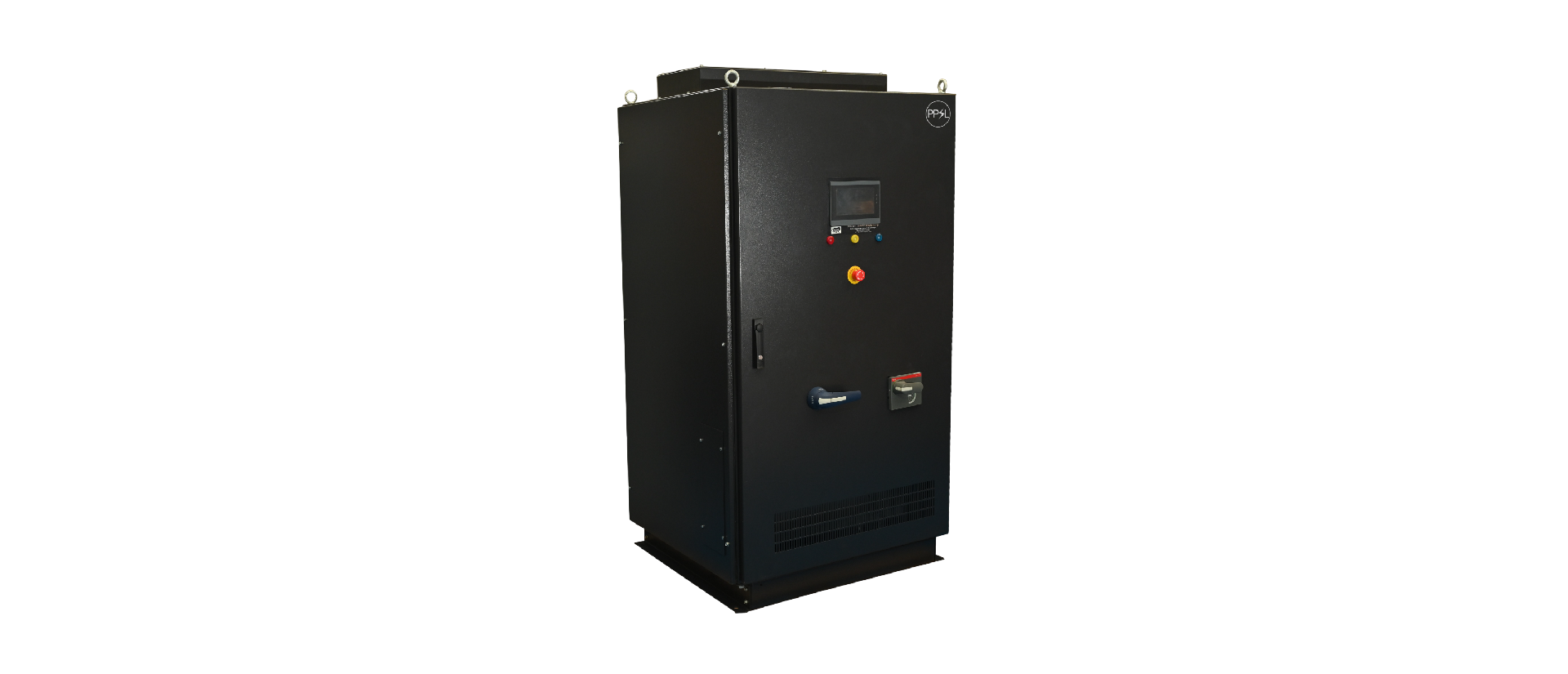

Battery Energy Storage
Inverter
250 KVA
250 KVA
| Features | |
|---|---|
| Faults | input Phase reverse, Battery reverse polarity, Cabinet Over temp, Door interlock, All Grid faults are built in - OV, UV, UF, OF Safe turnoff under Output Short circuit. |
| Special feature |
Built In DC & AC Precharge, Control Battery Charging in OFF grid Mode, Smart Grid Tie Power saving Mode, SOC based charging Mode, Black Start in off Grid Mode |
| Technology | With Built-in Isolation Transformer, 4-quadrant operation |
| Wide DC Input range |
200-1500 VDC, Derating: 1350-1500 VDC |
| Standards Compliance |
IEEE 1547, UL 1741 SA REV3 |
MAJOR ACHIEVEMENTS:
- Authorized Distributor & technical consultant for “Fuji Electric” Semiconductor.
- World leader with wide range of Gate Driver solution up to 2MW Power stage conversion.
- Successful 50MW+ Water cooled converter Installation for Major OEM across the Globe.
- Well known technology provider in the field of Induction, Traction, Corona treater, Industrial Online UPS & many more
BATTERY ENERGY STORAGE INVERTER
250 KVA
250 KVA
| Input Specifications | |
|---|---|
| DC Voltage Range 4 | Nominal : 200 - 1000 VDC Optional > 1000 VDC |
| Max Countinuous DC Current/Voltage Rippel |
715 A / < 1% |
| Maximum /Minimum DC voltage for full power |
900/ 350 VDC |
| Power range | 140KVA@200V&@1000V/ 175KVA@250V/ 210KVA@300V/ 250KVA@350 V DC |
| Environmental Specification | |
| Operating Temp 3 | -25 to 60 °C |
| Cooling | Forced Air Cooled |
| Related Max. Elevation |
1,000 Meters Full Power Up to 3,000 meters with Derating |
| Enclosure 2 | RAL 9005, IP 54/ IP 34 |
| Dimensions (HXWXD) | 1796 X 942 X 815 mm ( ± 5 mm) |
| Approximate Weight in kg |
1200 |
| User Interface | |
| Remote Monitoring & Communication |
Modbus TCP with Automated Alerts |
| Grid Connections | |
| AC Line Voltage | 480 / 415 VAC (+15%, -15%), 3-Ph |
| AC Line Frequency | 60 / 50 Hz (+ / - 1%) Settable |
| Continuous AC Current |
301 / 348 A RMS |
| Overload AC Current | 320 / 366 A RMS |
| Continuous AC Power | 250 KW |
| Overload AC Power | 300 KW |
| Power Factor | +1.0 to -1.0 |
| Current Harmonics | IEEE 1547 Compliant, <3% TDD |
| Peak Efficiency | 97.80% |
NOTE:
- Unit is designed such that it will pass the above standard.
- User must specify the IP rating of unit during ordering. By default IP34 rating will be available.
- Unit derating will start from 50 °C
- Optional DC voltage range from 1000-1500VDC available upon request.
